Description

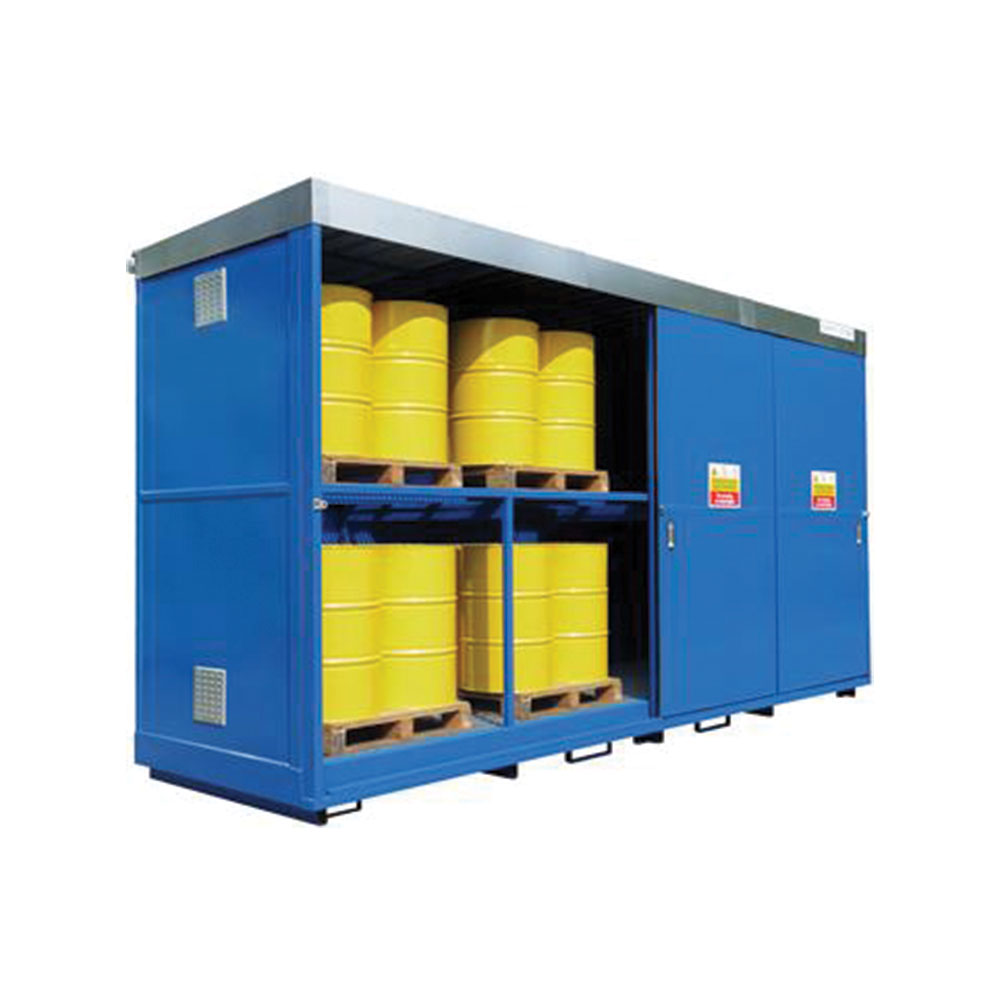

32 drum 8 IBC bunded storage unit designed for secure storage of 205 litre drums, 1000 litre IBCs, or a combination of both. With capacity for up to 32 drums or 8 IBCs, this configuration is suited to larger industrial sites that need robust secondary containment for chemicals, oils and hazardous liquids.
The unit is constructed from 2mm profiled mild steel sheet over a 100 x 50 x 3mm RHS frame, with welded construction for added strength. A fully welded leakproof sump extends across the entire base area to a depth of 220mm, providing integrated secondary containment.
Key features and benefits
- Capacity for up to 32 x 205 litre drums or 8 x 1000 litre IBCs
- Fully welded leakproof sump across the entire base area
- 220mm sump depth
- 2mm profiled mild steel construction over a 100 x 50 x 3mm RHS frame
- High and low-level ventilation
- Padlockable sliding doors
- Support beam bearers at upper and lower levels
- Two-part sump coating system for resistance to acids, alkalis and other strong chemicals
- Multiple configurations and optional equipment available
- Five standard colour options, with bespoke RAL colours available
- UK-manufactured, with repair support available for accidental damage
- Temperature control, lighting and fire suppression options available, including configurations for ATEX environments where appropriate
- Fire-rated options, pressure-release roofs and flame-arrested ventilation systems available
- Proven push-back and operating mechanisms for demanding industrial environments
Product dimensions and capacity
- Height: 3200mm
- Width: 5900mm
- Depth: 1650mm
- Capacity: 32 drums / 8 IBCs
- SKU: SC3012
Is this bunded storage unit suitable for my site?
This configuration is particularly suited to chemical manufacturing, fuel and oil storage, process sites and other regulated industrial environments where multiple drums or IBCs need to be stored within one secure containment area.
Before specifying the unit, consider the substances being stored, required containment capacity, access requirements, site layout and any environmental or fire-protection requirements.
Hazchem Safety can provide site survey, review and specification advice where required.
Compliance and guidance
The unit is designed to support compliant storage arrangements for drums and IBCs. Suitability should be confirmed against the substances being stored, the site risk assessment and applicable environmental and HSE guidance.
HSG51 guidance advice is available where relevant to the storage of flammable liquids.
For further guidance on secondary containment requirements, read our Bunded Storage: Legal Requirements and 110% Bunding Rules Explained.
