Description
High-capacity bunded storage for drums and IBCs

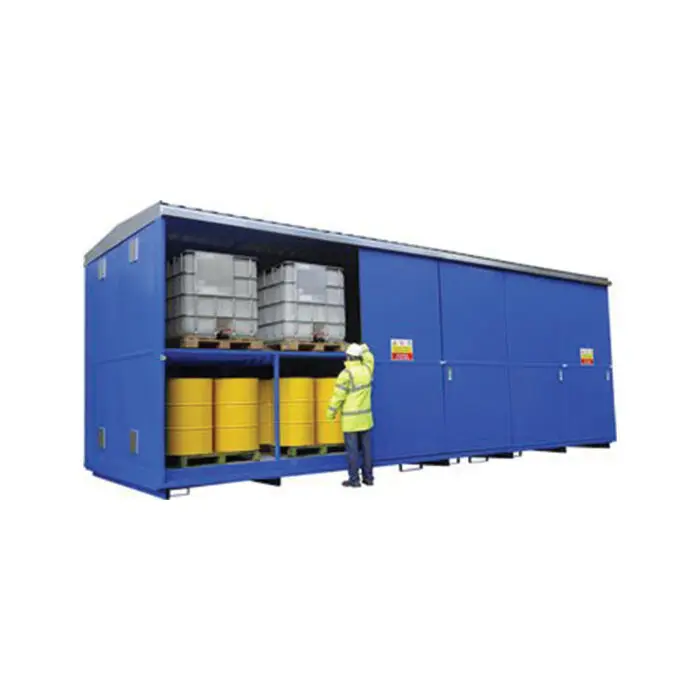

96 drum 24 IBC bunded storage unit designed for high-volume storage of 205 litre drums, 1000 litre IBCs, or a combination of both. With capacity for up to 96 drums or 24 IBCs, this configuration is suited to larger industrial sites managing substantial quantities of chemicals, oils and hazardous liquids.
The unit is welded for added strength and constructed from 2mm profiled mild steel sheet over a 100 x 50 x 3mm RHS frame. A fully welded leakproof sump extends across the entire base area to a depth of 220mm, providing integrated secondary containment.
Key features and benefits
- Capacity for up to 96 x 205 litre drums or 24 x 1000 litre IBCs
- Fully welded leakproof sump across the entire base area
- 220mm sump depth
- 2mm profiled mild steel construction over a 100 x 50 x 3mm RHS frame
- High and low level ventilation
- Padlockable sliding doors
- Support beam bearers at upper and lower levels
- Two-part sump coating system for resistance to acids, alkalis and other strong chemicals
- Multiple configurations and optional equipment available
- Five standard colour options, with bespoke RAL colours available
- UK manufactured, with repair support available for accidental damage
- Temperature control, lighting and fire suppression options available, including configurations for ATEX environments where appropriate
- Fire-rated options, pressure-release roofs and flame-arrested ventilation systems available
- Push-back and operating mechanisms designed for demanding industrial environments
Product dimensions and capacity
- Height: 3350mm
- Width: 8900mm
- Depth: 3300mm
- Capacity: 96 drums / 24 IBCs
- SKU: SC3016
Is this 96 drum 24 IBC bunded storage unit suitable for my site?
This configuration is particularly suited to larger chemical manufacturing, fuel, process, logistics and industrial sites where significant volumes of drums or IBCs need to be stored within one controlled containment area.
It may also suit organisations looking to consolidate several smaller storage areas into a larger centralised solution or standardise hazardous liquid storage across a major operational site.
Before specifying the unit, consider:
- current and future storage volumes
- the mix of drums and IBCs
- the substances being stored
- required containment capacity
- loading and unloading access
- site layout and installation space
- security requirements
- fire protection or environmental requirements
Hazchem Safety can provide site survey, review and specification advice where required.
Compliance and guidance
The unit is designed to support compliant storage arrangements for drums and IBCs. Suitability should be confirmed against the substances being stored, the site risk assessment and applicable environmental and HSE guidance.
HSG51 guidance advice is available where relevant to the storage of flammable liquids. For further information, refer to the HSE’s guidance on the storage of flammable liquids and Hazchem Safety’s Bunded Storage: Legal Requirements and 110% Bunding Rules Explained.
